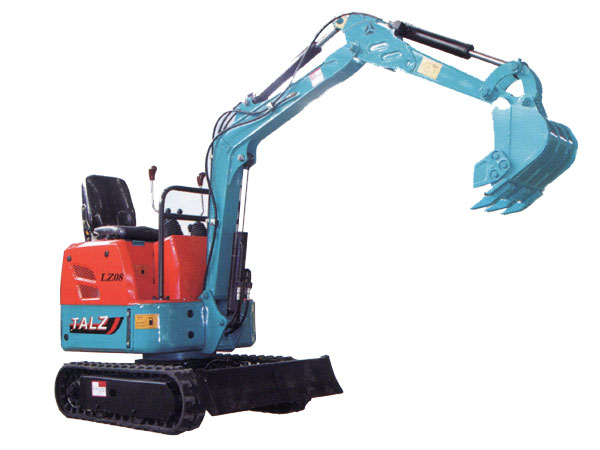

LZ-08微型挖掘機
LZ-08產品概述
08型小型挖掘機是根據廣大客戶要求,是我公司生產制造的一款國內小型挖掘機。 該產品外觀漂亮,配置高,性能優越,油耗低,作業范圍廣,主要用于小型土石方工程、市政工程、路面修復、混凝土破碎、埋設電 纜、自來水管道的鋪設、園林栽培及河道河溝清淤工程。履帶小型挖掘機具有中型挖掘機的多項功能,又具有運輸、能耗、靈活性、適 應、高 效率等方面的優勢,非常適用于空間狹 小的施工場地作業。提高機械化程度,低投資,高回報。
Type 08 small excavator is according to the requirements of our customers, our company is the production of a domestic mini excavator The product of beautiful appearance, high configuration, excellent performance, low fuel consumption, wide operating range, mainly used for small earthwork engineering, municipal engineering, road repair, concrete crushing, underground cables, pipe laying, tap water and river dredging rivers garden cultivation. Crawler excavator has many functions, such as transportation, energy consumption, flexibility, adaptability, high efficiency and so on. It is very suitable for the construction site operation with narrow space. Improve the degree of mechanization, low investment, high returns.

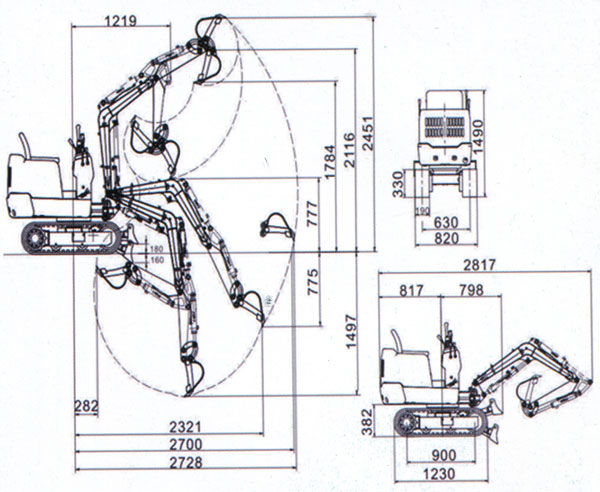

產品尺寸圖
工作范圍 Operating range | ||
挖掘距離Maximum digging distance | mm | ≤2728 |
挖掘深度Maximum digging depth | mm | ≤21497 |
挖掘高度Maximum digging height | mm | ≤22451 |
卸載高度 Maximum unloading height | mm | ≤21784 |
回轉半徑Minimum Swing radius | mm | ≥21219 |
地面挖掘距離Maximum ground mining distance | mm | ≤22700 |
垂直挖掘深度Maximum vertical digging depth | mm | ≤2775 |
性能參數Parameter | ||
整機重量Weight | kg | 800 |
發動機功率Engine power | kw | 8.6 |
標準鏟斗容量Bucket capacity | m3 | 0.025 |
回轉速度Rotary speed | rpm | 15 |
行走速度Walking speed | km/h | 0-2 |
爬坡能力Climbing ability | ° | <30 |
外形尺寸Dimensions | ||
全車總寬Width | mm | 820 |
全車總高Height | mm | 1490 |
全車總長Length | mm | 2817 |
離地間隙Minimum ground clearance | mm | ≥2115 |
